Steel Mesh Panel Welded Wire Mesh Stainless Black

Steel Mesh Panel Welded Wire Mesh Stainless Black

3x3 galvanized sheet cattle welded wire mesh panel
Product Description

Welded wire mesh
welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated or stainless steel wire and then welded. .It features smooth surface,uniform mesh,high stability and great corrosion resistance.


Welding style:
1-Electro galvanized wire mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized wire mesh(welded before galvanized, welded after galvanized)
3-PVC coated welded wire mesh
4- stainless steel wire welded mesh

Opening(inch)	Opening(mm)	Wire diameter(BWG)	Wire diameter(mm)
1" × 1"	25mm×25mm	14# - 11#	2.0mm - 3mm
2" × 1"	50mm×25mm	14# - 8#	2.0mm - 4mm
2" × 2"	50mm×50mm	14# - 8#	2.0mm - 4mm
3" × 2"	75mm×50mm	14# - 6#	2.0mm - 5mm
3" × 3"	75mm×75mm	14# - 6#	2.0mm - 5mm
4" × 2"	100mm×50mm	14# - 4#	2.0mm - 6mm
4" × 4"	100mm×100mm	14# - 4#	2.0mm - 6mm
5" × 5"	125mm×125mm	14# - 4#	2.0mm - 6mm
6" × 6"	150mm×150mm	14# - 4#	2.0mm - 6mm

Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit

Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.
2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.
3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.
4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.
5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.
6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.
9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.
11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.

stainless steel welded wire mesh

black steel mesh panel

welded wire mesh with warranty

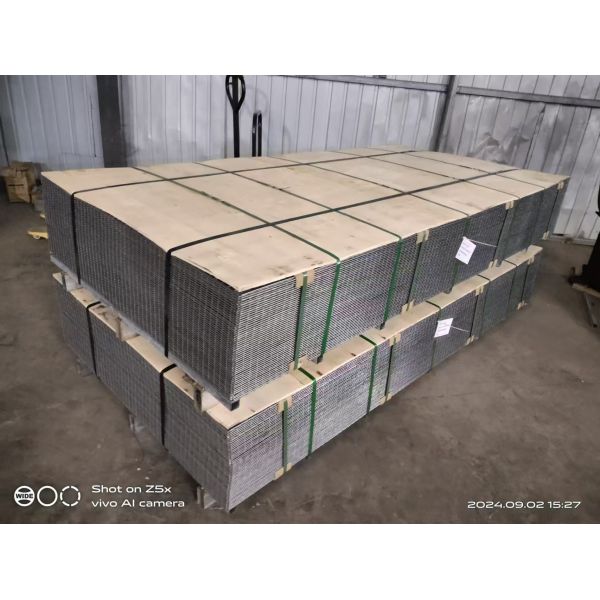

Steel Mesh Panel Welded Wire Mesh Stainless Black Images
